Products Name:Meat dicer cutter machine

The meat dicer cutter machine is suitable for large factories, mining enterprises, universities, government cafeterias, central kitchens, fast food companies, food factories, fresh supermarkets, meat product factories, semi-finished product processing and distribution places, etc

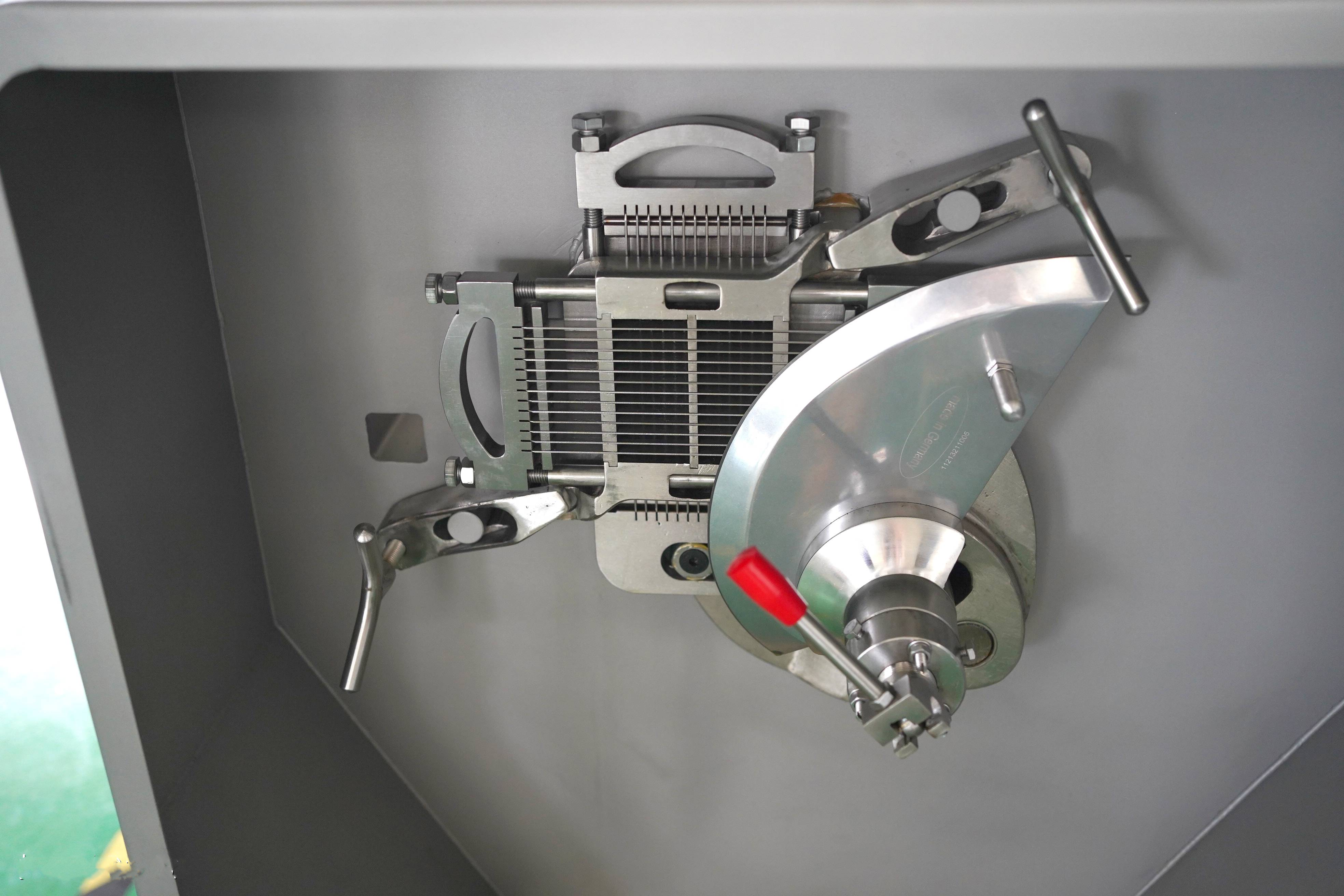

Made of 304 stainless steel, it can accurately cut into shapes such as dice, silk, and strips. It is an important equipment in the production process of meat products. It can cut the main raw materials such as meat pieces, minced meat, and fat into the diced meat that users need. The size and style of the diced meat are determined by the tool switch, with high work efficiency, large output, easy maintenance, simple tool disassembly and cleaning, and can meet the production needs of a large number of users.

Machine size：1480*800*1000mm 1950*1000*1120mm
Cutting groove：84*84*350mm 120*120*550mm
Cutting grating  5/6/7/8/10/12/14/21/24/28/30mm
Working power：3kw/380v 3.7kw/380v
Machine weight ：500kg 700kg
Capacity：500-600kg/h 700-900kg/h



Common trouble shooting
1. The adjustment button does not work when adjusting the thickness of the cutting
Check if the button is loose, and if so, tighten the knob.
2. There is friction between the large blade and the blade grid
If the tool is not properly installed or the three screws on the tool holder are not tightened, install the tool and adjust the three screws on the tool holder.
3. Is the machine noisy and the spindle shaking?
◎ If the bearing is worn, replace it.
4. The machine is not moving and the push rod cannot be reset?
Check whether the power supply, contact switches, transformers, and solenoid valves are working properly, and ensure that there is no reverse connection in sequence.
Check whether the hydraulic pressure is normal and whether the liquid level filter screen is clean.
Check if the thickness adjustment valve is properly adjusted and if there is any damage.
Clean the solenoid valve.
